Crawler Crane Safety Monitoring System
Function
- Real-time Data Monitoring
- Multi-sensor Data Fusion
- Remote Monitoring
- Data Analysis and Reporting
Product configuration
|
Key attributes |
|
|
Brand Name |
Tenesin |
|
Place of Origin |
DaLian China |
|
Operating voltage |
220VAC±20% |
|
Operating temperature |
-20-55℃ |
|
Operating humidity |
10-95%RH |
|
Operating power |
≤30W |
|
Networking method |
Router |
|
Display size |
10.1-inch |
Functional Overview
● Operating Data Analysis
The crawler crane safety monitoring system tracks key crane parameters in real time, enabling prompt detection of operational anomalies.
● Multi-Sensor Data Fusion
By integrating data from multiple sensors-including tilt, load, height, and rotation sensors-the system enhances monitoring accuracy and operational reliability.
● Remote Monitoring
Through network connectivity, the platform supports remote monitoring and management of multiple cranes, improving operational efficiency.
● Data Analysis and Reporting
The system can analyze and report on data, providing decision-making support for managers to improve workflows and enhance security.

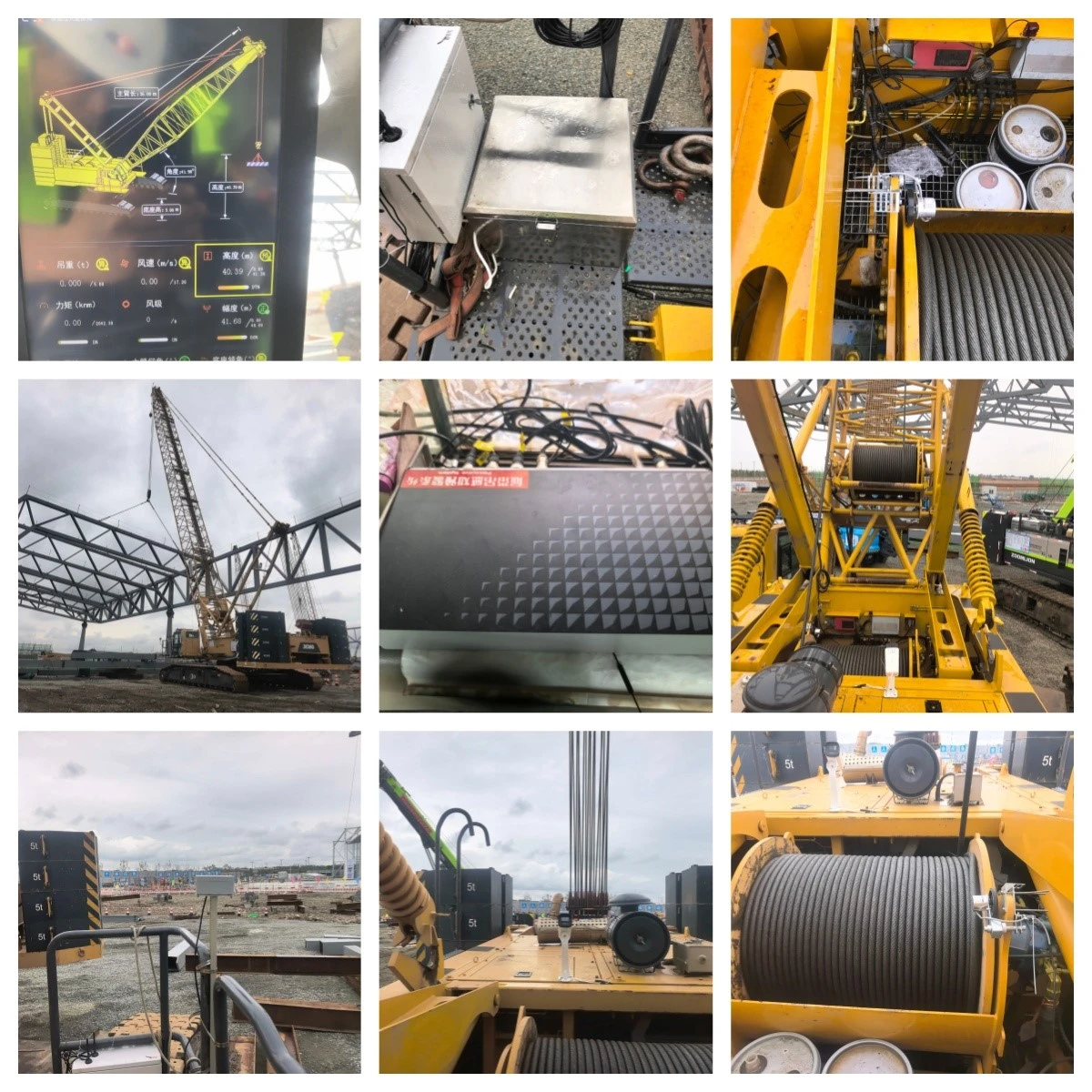

Installation pictures
Application Scenarios
● Construction: Safeguarding lifting operations by preventing crane booms from striking scaffolding or adjacent buildings.
● Petrochemical: Enhancing safety in flammable and explosive areas by avoiding equipment-pipeline collisions and mitigating static electricity hazards.
● Power Maintenance: Enabling safe work near energized lines to prevent electrical shock and avoid damage to the power grid.
Custom Development Solutions
We specialize in bespoke hardware and software development. Our team's extensive experience in design and manufacturing allows us to engineer products from the ground up to address your unique challenges and requirements.
Tenesin Crawler Crane Safety Monitoring System (Upgraded Version)
Ensuring the safety of crawler crane operations requires addressing dynamic risks in complex environments and adapting to diverse operating scenarios.
The Tenesin Crawler Crane Safety Monitoring System (Upgraded Version), through enhanced AI algorithms, hardware expansion, data closed-loop optimization, and work condition adaptation, builds a comprehensive safety protection system covering all elements of "people-machine-environment-management," effectively compensating for the shortcomings of traditional monitoring.
1. AI Intelligent Recognition: Making Safety "Visible"
The system innovatively deploys a dual-channel AI camera system with "high-altitude global + cab fixed-point" capabilities, combined with local edge computing, to achieve real-time analysis and response to "human" and "environmental" risks.
Precise driver behavior control: In addition to identifying fatigue, it can accurately detect dangerous behaviors such as distracted driving (using mobile phones, smoking, etc.), providing timely voice reminders to reduce human error at the source.
Active warning in the hook area: The AI camera at the top of the boom intelligently tracks the dynamics below the hook. If personnel enter the area, it immediately triggers audible and visual alarms, achieving a leap from passive monitoring to active intervention.
2. High-Voltage Line Active Protection: Building a Precise "Electronic Safety Boundary"
针对 the most dangerous risk of collision with high-voltage lines during lifting operations, the system establishes a multi-level, three-dimensional protection system.
Full voltage level coverage: Adapts to common voltage levels from 10kV to 220kV, comprehensively covering the power environment of different construction sites.
Dual alarm mechanism: When the equipment approaches the national standard safety distance, the system simultaneously triggers voice alarms in the cab and audible and visual alarms on-site, forming a dual barrier of "internal and external linkage."
3. Full-Dimensional Data Monitoring, Building a Digital Management Closed Loop
The system comprehensively monitors key parameters such as lifting weight, height, amplitude, and inclination angle, providing precise warnings for risks such as overload and tipping.
Each operation is automatically recorded and archived, forming a traceable data chain. Managers can achieve visualized collaborative supervision from the site to remote locations through a computer digital twin platform or mobile APP.
The system also integrates reminders for work stoppage during inclement weather, dynamically building safety boundaries.
Technology empowers the industry, and safety never stops!
Tenesin Technology, specializing in crane safety monitoring,focuses on construction safety and provides smart construction site products. We offer safety monitoring products for cranes such as tower cranes, hoists, crawler cranes, truck cranes, luffing jib cranes, and bridge erecting machines,etc.
The company has R&D, production, sales, pre-sales, and after-sales teams.We support customization, offer high-quality products, and provide efficient service!!!
If you have any needs regarding LMI, SLI, anti-collision systems, crane safety devices,safety load indicators, or load moment indicators, please contact us.
